| XC3000 | XC4000E | XC4000X | XC5200 | XC9000 | Spartan | SpartanXL | Spartan2 | Virtex |
|---|---|---|---|---|---|---|---|---|
| Macro | Macro | Macro | Macro | Macro | Macro | Macro | Macro | Macro |

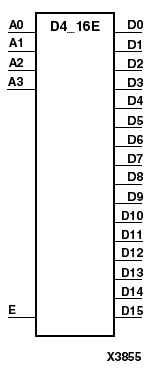

When the enable (EN) input of the D4_16E decoder/demultiplexer is High, one of 16 active-High outputs (D15 - D0) is selected with a 4-bit binary address (A3 - A0) input. The non-selected outputs are Low. Also, when the EN input is Low, all outputs are Low. In demultiplexer applications, the EN input is the data input.
Refer to the “D3_8E” section for a representative truth table derivation.
Figure 4.56 D4_16E Implementation XC3000, XC4000E, XC4000X, XC5200, XC9000, Spartan, SpartanXL, Spartan2, Virtex
